What Is a System on Chip?
A System on Chip (SoC) is a semiconductor device that integrates multiple system-level functions into one integrated circuit.
A simplified SoC may look like this:
CPU → Memory System → Interconnect → Peripherals and I/O
But modern SoCs can contain much more:
- CPU or multiple CPU cores
- Cache memory
- Memory controllers
- GPU
- DSP
- AI/ML accelerator
- GPIO
- UART, SPI, I2C and other interfaces
- Timers and interrupt controllers
- USB or networking interfaces
- Security blocks
- Power-management functions
- Image or video processing blocks
Arm describes SoC development as integrating processing, memory, I/O, peripherals and storage-related functions into a single integrated circuit, with accelerators and specialized blocks often added according to the product requirements.
One important point for students is this:
An SoC does not necessarily mean that every memory device is physically inside the same silicon die.
For example, an SoC may include a memory controller while using external DRAM. What makes the device an SoC is the level of system-function integration, not simply the presence of RAM on the same die.
How Does an SoC Work?
Suppose you are designing an embedded vision product.
A camera captures an image. The system then needs to:
- Receive data from the image sensor.
- Process the image.
- Store or move image data through memory.
- Run application software.
- Possibly perform AI inference.
- Send the result to another device.
In a traditional design, several different chips might perform these jobs.
In an SoC-based design, many of these functions can be integrated into a single chip.
For example:
Image Sensor → SoC Interface → ISP → CPU/GPU/NPU → Memory → Communication Interface
The internal components communicate through an on-chip interconnect rather than requiring every function to communicate through separate external chips and PCB traces. Modern SoCs commonly use standardized on-chip interconnect structures to connect processors, memory systems, peripherals and accelerators.
This integration is the main reason SoCs are so important in embedded and consumer electronics.

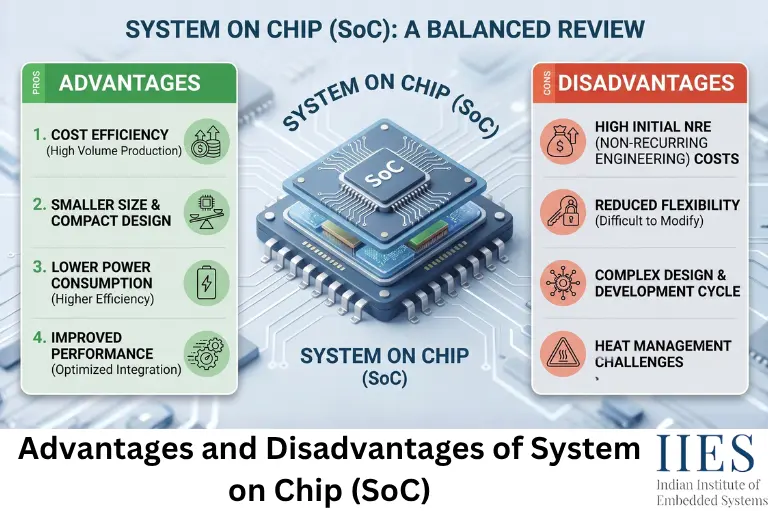

Advantages of System on Chip
Now let us look at the major advantages of system on chip from an embedded engineer’s point of view.
1. Smaller System Size
The first obvious advantage is compactness.
Without an SoC, a product might require separate chips for:
- Processor
- Graphics
- Communication
- Memory control
- Peripheral control
- Security
- Signal processing
An SoC can combine many of these functions into one device.
That means fewer external components and potentially a smaller PCB.
This is especially important in:
- Smartwatches
- IoT sensors
- Mobile devices
- Drones
- Wearable electronics
- Compact industrial products
When the physical size of a product is limited, integration becomes a major engineering advantage.
2. Lower Power Consumption
Power consumption is one of the most important considerations in embedded systems.
When data moves between separate chips, it has to travel across PCB traces and external interfaces. With more functionality integrated on-chip, many internal communication paths become shorter and can be designed for efficient operation.
Arm notes that integrating components inside an SoC can reduce interconnect-related energy and support more power-efficient system designs.
This is particularly valuable for battery-powered devices.
For example, consider a wearable device that needs to operate for several days on a small battery.
A highly integrated SoC can combine processing, connectivity and sensor-related functions while supporting power-management techniques such as shutting down or slowing unused blocks.
The result can be a better balance between performance and battery life.
3. Better Performance
An SoC is not automatically faster simply because everything is integrated.
The real advantage comes from optimized integration.
The CPU, memory system, accelerators and peripherals can be designed to work together efficiently.
For example, an SoC may include a dedicated hardware accelerator for a particular workload.
Instead of asking the CPU to perform every operation in software, a specialized accelerator can handle tasks such as:
- Image processing
- Video encoding/decoding
- Signal processing
- Machine-learning inference
The CPU can then concentrate on application logic and system management.
This heterogeneous architecture is common in modern SoCs, where multiple processor types or specialized hardware blocks are designed for different workloads.
4. Fewer External Components
A conventional embedded board may require many ICs to build a complete system.
With higher integration, an SoC can reduce the number of supporting chips.
Fewer chips can mean:
- Less PCB area
- Fewer interconnections
- Lower component count
- Simpler board-level routing
- Potentially lower manufacturing complexity
However, engineers should remember that an SoC does not eliminate the need for external components completely. Power-management ICs, memory, sensors, connectors and other components may still be required depending on the product.
5. Improved System Integration
An SoC allows hardware designers to optimize different system blocks as one platform.
For example, security functionality can be designed alongside processing, memory and peripheral access.
Modern SoCs may include hardware-enforced security mechanisms and isolated execution environments. Arm TrustZone is one example of a security architecture that can extend protection across processor execution, memory, peripherals and other parts of the system.
From an embedded engineer’s perspective, this means security is increasingly becoming a system-level hardware and software problem, rather than something added at the end of development.
6. Lower Bill of Materials in High-Volume Products
If one SoC replaces several individual ICs, the total component count can decrease.
For products manufactured at large volumes, this can provide an important cost advantage.
But students should understand an important distinction:
Designing an SoC can be very expensive, while using an existing SoC can be economically attractive.
The initial SoC development process may involve architecture definition, IP integration, verification, fabrication and silicon validation. Therefore, SoCs make the most economic sense when the expected production volume and performance requirements justify the development effort.
7. Better Power, Performance and Area Optimization
Embedded engineers often talk about the PPA trade-off:
Power + Performance + Area
An SoC provides the opportunity to optimize these three factors together.
For example:
A mobile device may need high performance during gaming but low power during standby.
An industrial controller may prioritize deterministic operation and reliability.
An AI camera may require high computational throughput while keeping power and thermal limits under control.
The SoC architecture can be tailored around the workload instead of relying only on general-purpose processing.
Disadvantages of System on Chip
An SoC sounds ideal, but engineering is always about trade-offs.
The disadvantages of system on chip become particularly visible when the design is complex or the application requirements change frequently.
1. High Initial Development Cost
Designing a sophisticated SoC can require a significant engineering investment.
The development process can involve:
- Architecture design
- IP selection and integration
- RTL development
- Functional verification
- Physical design
- Power analysis
- Timing analysis
- Fabrication
- Silicon validation
A mistake discovered late in the process can be expensive to correct.
This is one reason many companies use proven IP blocks and established SoC platforms rather than designing every component from scratch.
2. Thermal Challenges
When many processing functions are placed close together on one chip, power density can become an important problem.
Imagine an SoC containing:
- Multiple CPU cores
- GPU
- NPU
- DSP
- High-speed memory interfaces
If several blocks operate at high utilization simultaneously, significant heat can be generated.
The designer must therefore consider:
- Clock frequency
- Voltage
- Power domains
- Thermal limits
- Workload distribution
- Cooling requirements
A high-performance SoC is not useful if the product cannot keep it within its thermal operating limits.
3. Less Flexibility After Manufacturing
An SoC is designed around a particular architecture and set of features.
Once the silicon is manufactured, you cannot normally replace one internal hardware block with a completely different block.
For example, if a product later needs a new hardware interface that was not included in the SoC, the manufacturer may need a new silicon revision or a different chip.
This is different from a modular board-level design where an individual IC can sometimes be replaced.
4. Debugging Can Be More Complex
A modern SoC may contain multiple CPUs, buses, memories, peripherals, accelerators and power domains.
When a system fails, identifying the exact source can be difficult.
Suppose an embedded device crashes.
The problem could be related to:
- Firmware
- Memory configuration
- Cache
- Interrupt handling
- DMA
- Peripheral drivers
- Clock configuration
- Power management
- Hardware acceleration
- On-chip interconnect
For an embedded engineer, understanding the interaction between hardware and software becomes extremely important.
This is why SoC development requires strong knowledge of areas such as embedded C/C++, debugging, device drivers, memory systems, interrupts and hardware interfaces.
5. A Single Chip Can Become a Major Point of Failure
Integration reduces component count, but it also concentrates functionality.
If a critical SoC fails, multiple system functions may stop working simultaneously.
In a more modular architecture, one failed peripheral IC may not necessarily disable the entire computing platform.
Therefore, engineers must carefully consider reliability, redundancy and system-level fault handling for safety-critical products.
6. Software and Hardware Become Closely Dependent
Modern SoCs are not only hardware platforms.
They depend heavily on:
- Boot firmware
- Device drivers
- Operating systems
- Hardware abstraction layers
- Middleware
- Security software
- Vendor-specific software frameworks
A hardware feature is only useful when the software stack can correctly control it.
This is why SoC-based embedded development requires engineers to understand both hardware and software.
Arm’s educational material for SoC design, for example, covers processors, interconnects, peripherals, interrupts, C programming and device drivers as connected parts of the overall development process.
Applications of SoC
The application of SoC can be seen in almost every area where compact, efficient computing is required.
1. Smartphones and Tablets
Smartphones are one of the best examples.
A mobile SoC can combine:
- CPU cores
- GPU
- Memory controller
- Image processing
- Video processing
- AI acceleration
- Security functions
- Connectivity-related hardware
This level of integration makes it possible to achieve high processing capability inside a small battery-powered product.
2. IoT Devices
IoT devices need a combination of processing, sensing, connectivity and power efficiency.
An SoC can integrate the computing and communication resources required by applications such as:
- Smart sensors
- Smart home devices
- Industrial monitoring
- Environmental monitoring
- Asset tracking
Low-power SoCs are particularly useful when devices must operate for long periods from batteries.
Arm identifies IoT and other low-power embedded applications as important targets for SoC-based designs.
3. Wearable Devices
Smartwatches and fitness devices have strict size and battery constraints.
An SoC can integrate processing and connectivity functions while leaving the designer more room for sensors, battery and display hardware.
The smaller the product, the more valuable integration becomes.
4. Automotive Electronics
Modern vehicles contain many electronic systems.
SoCs can be used for areas such as:
- Infotainment
- Digital instrument clusters
- ADAS processing
- Camera systems
- Connectivity
- Automotive gateways
- Central computing platforms
Automotive applications also place strong demands on safety, security, thermal management and reliability.
5. Embedded Vision and Cameras
Camera systems can require significant processing.
An SoC may combine a CPU with image-processing hardware and AI acceleration.
A camera can therefore capture an image, process it and run an AI model without sending every operation to a remote server.
This is especially valuable for edge applications where latency, bandwidth or privacy is important.
Industrial equipment increasingly uses intelligent embedded controllers.
SoCs can support applications involving:
- Machine vision
- Robotics
- Industrial networking
- Motor-control support
- Data acquisition
- Edge computing
- Predictive monitoring
The exact architecture depends heavily on whether the system prioritizes real-time control, high-performance computing, connectivity or AI processing.
SoC vs Traditional Multi-Chip Design
It is useful to compare the two approaches.
Parameter | Traditional Multi-Chip Design | SoC-Based Design |
Component count | Usually higher | Usually lower |
PCB area | Larger | More compact |
Internal integration | Lower | High |
Power optimization | Can be more difficult | Strong integration opportunities |
Hardware flexibility | Often higher | More fixed after fabrication |
Initial development | Can be simpler for small systems | Can be complex |
High-volume production | May require more components | Can benefit from integration |
Debug complexity | Distributed across chips | Can be highly integrated and complex |
Specialized acceleration | Often requires additional ICs | Can be integrated into SoC |
The correct choice depends on the product requirements.
An SoC is not automatically better than a multi-chip architecture.
Engineering is about choosing the architecture that gives the required combination of performance, power, cost, flexibility, reliability and development time.
This is a common question among students.
The answer is:
No, they are related concepts but they are not exactly the same.
A microcontroller typically integrates a processor core, memory and peripherals for control-oriented embedded applications.
An SoC is a broader system-integration concept. Depending on the application, an SoC may contain much more powerful processors, multimedia blocks, GPUs, AI accelerators, complex memory systems and sophisticated connectivity.
There can also be overlap between the two categories. Some low-power SoCs can look very similar to highly integrated microcontrollers, while other SoCs are designed for Linux-based or high-performance systems.
So rather than memorizing a strict component checklist, focus on the level of system integration and intended workload.
Final Thoughts
The advantages and disadvantages of system on chip are really a story about integration and engineering trade-offs.
The biggest advantages are compact design, reduced component count, efficient communication between integrated blocks, power and performance optimization, and the ability to combine specialized hardware with general-purpose processors.
At the same time, SoCs introduce challenges such as high development complexity, thermal constraints, limited hardware flexibility after fabrication, difficult debugging and strong hardware-software dependencies.
For embedded engineers, understanding SoCs is important because modern products increasingly combine processing, connectivity, security and application-specific acceleration into highly integrated platforms.
The most important lesson is simple:
An SoC is not just a CPU packed with extra features. It is a complete system architecture implemented through carefully integrated hardware and software.
Once you understand how the CPU, memory system, interconnects, peripherals and accelerators work together, many modern embedded products become much easier to understand.
