Automotive Ethernet Explained: Architecture, Protocols,Applications

What Is Automotive Ethernet?

Automotive Ethernet is a vehicle-grade implementation of standard Ethernet technology designed specifically for in-vehicle communication.
It connects ECUs, sensors, cameras, infotainment systems, and centralized controllers using IP-based networking.

Unlike traditional automotive communication buses, automotive Ethernet supports data rates from 100 Mbps up to multi-gigabit speeds,
making it a key enabler for next-generation vehicle features such as:

• High-resolution camera and radar streaming
• Sensor fusion for ADAS and autonomous driving
• Over-the-Air (OTA) software updates
• High-speed infotainment and vehicle connectivity

Why Automotive Ethernet Is Replacing CAN and FlexRay

Automotive Ethernet is the only in-vehicle communication technology that scales with future vehicle requirements.

Automotive Ethernet Architecture: OSI and TCP/IP Models Explained

To work effectively with automotive Ethernet, engineers must understand its layered communication architecture.
Layered models divide complex communication tasks into manageable functional blocks.

Two models are commonly referenced:

• OSI Model – A conceptual 7-layer communication model
• DoD / TCP-IP Model – A practical implementation model used in real systems

Layer-by-Layer Automotive Ethernet Design

Layer 1 – Physical Layer (OSI)

The Physical Layer defines how digital data is transmitted over the physical medium.
In automotive Ethernet, this includes:

• Single-pair twisted cables (100BASE-T1, 1000BASE-T1)
• Automotive-grade PHY transceivers
• EMI-resistant shielding
• Rugged connectors for vibration and temperature extremes

This layer focuses purely on bit transmission without interpreting the data.

Layer 2 – Data Link Layer (OSI)

The Data Link Layer manages communication between devices on the same network segment.
Its responsibilities include:

• Ethernet frame formatting
• MAC addressing
• Error detection using CRC
• Media access control

Layer 3 – Network Layer (OSI) / Internet Layer (DoD)

This layer handles logical addressing and routing across the vehicle network.
Functions include:

• IP addressing
• Packet routing between domains and zones
• Scalable in-vehicle networking

Layer 4 – Transport Layer (OSI & DoD)

The Transport Layer ensures reliable or real-time end-to-end communication.

• TCP – Reliable, ordered delivery (used for diagnostics and OTA updates)
• UDP – Low-latency transmission (used for ADAS and sensor data)

Layer 5 – Session Layer (OSI)

The Session Layer manages session establishment, maintenance, and termination.
In automotive systems, these functions are typically integrated into higher-level protocols.

Layer 6 – Presentation Layer (OSI)

This layer ensures that data is correctly:

• Formatted
• Compressed or decompressed
• Encrypted or decrypted

Layer 7 – Application Layer (OSI & DoD)

The Application Layer provides network services directly to vehicle applications, including:

• Diagnostics
• Configuration
• Service discovery
• Data exchange

In the DoD model, OSI Layers 5, 6, and 7 are combined into a single Application Layer.

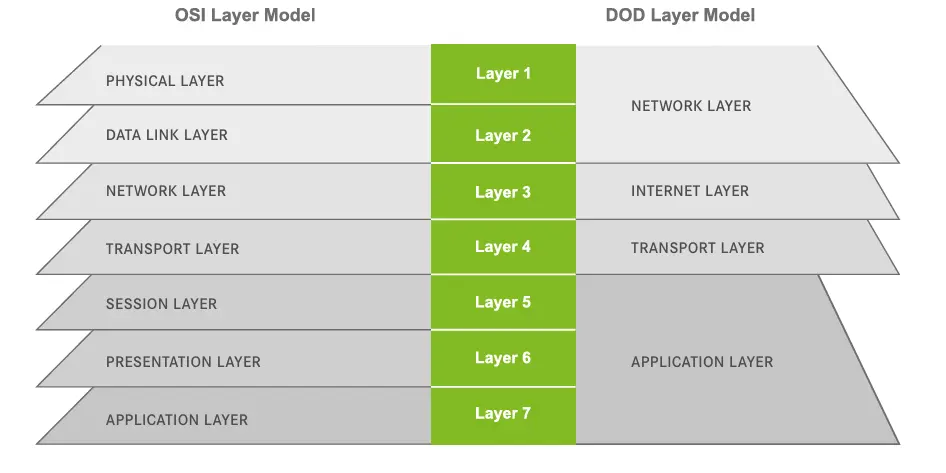

OSI and DoD Model Relationship

• OSI Layers 1–2 → DoD Network Access Layer
• OSI Layer 3 → DoD Internet Layer
• OSI Layer 4 → DoD Transport Layer
• OSI Layers 5–7 → DoD Application Layer

Automotive Ethernet Protocol Stack

Real-World Automotive Ethernet Applications

BMW – ADAS Camera Backbone Network

BMW uses automotive Ethernet to connect front, rear, and surround-view cameras to ADAS domain controllers.

How it works:

• Cameras stream HD video over automotive Ethernet
• Central ECU performs lane detection and collision avoidance
• TSN ensures latency remains within a few milliseconds

Without automotive Ethernet, real-time multi-camera processing would not be feasible.

Tesla – Centralized and Zonal Vehicle Architecture

Tesla’s vehicle architecture is built almost entirely around automotive Ethernet.

Practical usage:

• All domain and zonal controllers communicate via Ethernet
• OTA updates are deployed simultaneously across ECUs
• Infotainment, ADAS, and powertrain share a high-speed backbone

This architecture enables Tesla’s rapid software innovation.

Bosch – Radar and LiDAR Sensor Fusion

Bosch uses automotive Ethernet in advanced sensor fusion platforms.

Industry scenario:

• Radar sends raw data via Ethernet
• LiDAR transmits point-cloud data
• Fusion ECU creates real-time 3D environment models

This technology is fundamental for autonomous emergency braking systems.

Mercedes-Benz – High-Speed Infotainment Systems

Luxury Mercedes models rely on automotive Ethernet for multimedia networking.

Real implementation:

• Rear-seat displays stream HD content
• Navigation data syncs with cloud services
• Audio and video remain jitter-free while driving

Continental – Central Gateway ECUs

Continental’s central gateway ECUs are Ethernet-based.

Key roles:

• Backbone between body, chassis, ADAS, and infotainment domains
• Diagnostics using DoIP
• Fast fault logging and predictive maintenance

Why the Automotive Industry Is Moving to Ethernet

Key Takeaways

• Automotive Ethernet is the backbone of modern vehicle networks
• It enables ADAS, sensor fusion, infotainment, and OTA updates
• TSN makes Ethernet suitable for real-time automotive systems
• Zonal and centralized architectures depend on Ethernet scalability
• OEMs like BMW, Tesla, Mercedes, Bosch, and Continental rely on it
