An embedded system is a dedicated computing system designed to perform one or more specific functions within a larger electronic device. Unlike general-purpose computers, embedded systems are optimized for reliability, efficiency, and real-time operation.
Examples of embedded systems include:
- Washing machines
- Smart TVs
- Automotive ECUs
- Medical monitoring devices
- Industrial automation systems
- IoT devices
- Smart watches
Most embedded systems combine hardware, firmware, sensors, actuators, and communication interfaces to perform predefined tasks.
What Is an Embedded Systems Architecture?
Embedded Systems Architecture is the structural design that defines how the hardware and software components of an embedded system interact to achieve the required functionality.
It specifies components such as the processor, memory, input/output peripherals, communication interfaces, operating system, middleware, and application software. A well-planned architecture improves system performance, scalability, reliability, and ease of maintenance.
Embedded Systems Design
Embedded systems design is the process of developing a complete embedded solution by selecting suitable hardware, designing software, integrating components, and testing the final product.
A typical embedded system design process includes:
- Requirement analysis
- Hardware selection
- Software and firmware development
- Hardware-software integration
- Testing and debugging
- Performance optimization
- Deployment and maintenance
The design process focuses on balancing cost, performance, power consumption, memory usage, and reliability based on application requirements.
Why Is Embedded Systems Architecture Important?
A well-designed embedded architecture directly affects the efficiency and reliability of a system. It helps developers build products that meet functional requirements while managing hardware resources effectively.
Some key benefits include:
- Improves system performance
- Optimizes memory utilization
- Reduces power consumption
- Enhances system reliability
- Simplifies software maintenance
- Supports modular development
- Enables easier scalability
- Improves hardware and software integration
- Helps meet real-time requirements
Core Components of Embedded Systems Architecture
An embedded system consists of several interconnected components that perform specific functions.
- Processor (CPU or Microcontroller): Executes program instructions and controls system operations.
- Memory: Stores firmware, application code, and runtime data using Flash, SRAM, or EEPROM.
- Input/Output (I/O): Connects the system with sensors, switches, displays, and actuators.
- Communication Interfaces: Enables data exchange through UART, SPI, I²C, CAN, USB, or Ethernet.
- Power Management: Regulates voltage and power consumption for stable operation.
- Firmware and Software: Controls hardware resources and implements application logic.
Hardware Architecture of Embedded Systems
The hardware architecture forms the physical foundation of an embedded system. It includes all electronic components required to execute dedicated tasks.
Typical hardware components include:
- CPU or Microcontroller
- Memory (Flash, SRAM, EEPROM)
- Clock and Reset Circuit
- Power Supply Unit
- Sensors and Actuators
- Communication Modules
- GPIO Interfaces
- Analog-to-Digital (ADC) and Digital-to-Analog (DAC) converters
The selection of hardware depends on factors such as processing speed, memory requirements, power consumption, peripheral support, and application complexity.
Software Architecture of Embedded Systems
Software architecture defines how software components interact with hardware to perform system functions. It provides a structured approach to firmware development and simplifies maintenance.
Common software components include:
- Bootloader
- Device Drivers
- Hardware Abstraction Layer (HAL)
- Middleware
- Real-Time Operating System (RTOS) or Bare-Metal Firmware
- Application Layer
Each software layer has a specific responsibility, allowing developers to modify one component without significantly affecting others.
Layers of Embedded Systems Architecture
Most embedded systems are designed using a layered architecture that separates hardware-specific functions from application logic.
| Layer | Purpose |
|---|
| Hardware Layer | Contains the processor, memory, sensors, communication modules, and peripherals. |
| Hardware Abstraction Layer (HAL) | Provides a standard interface between hardware and higher software layers. |
| Operating System / RTOS | Manages tasks, scheduling, synchronization, and resource allocation. |
| Middleware | Offers reusable services such as communication stacks and file systems. |
| Application Layer | Implements the main functionality required by the embedded application. |
A layered architecture improves modularity, simplifies debugging, and makes the system easier to maintain and extend.

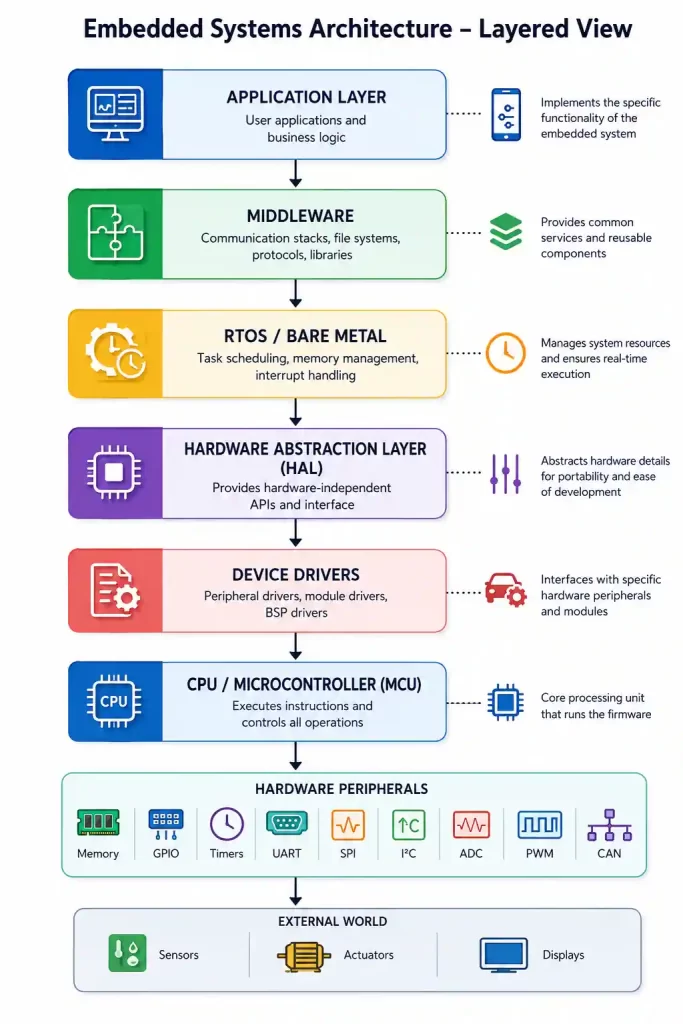

Embedded Systems Architecture Block Diagram
Types of Embedded Systems Architecture
Different applications require different architectural approaches based on performance, cost, scalability, and real-time requirements.
1. Layered Architecture
Layered architecture separates the system into multiple software layers, with each layer handling a specific responsibility. This approach improves modularity and simplifies maintenance.
It is widely used in consumer electronics, industrial controllers, and IoT devices.
2. Modular Architecture
Modular architecture divides the system into independent modules that can be developed, tested, and updated separately. This makes large embedded projects easier to manage.
It is commonly used in automotive electronics, robotics, and industrial automation.
3. Event-Driven Architecture
In an event-driven architecture, the system responds whenever an external or internal event occurs, such as a button press, sensor trigger, or communication interrupt.
This architecture is suitable for real-time systems where immediate responses are required.
4. Client-Server Architecture
Client-server architecture allows one embedded device to request services or data from another device over a communication network.
It is commonly found in smart home systems, industrial monitoring, and IoT gateways.
Which Embedded Systems Architecture Should You Choose?
Selecting the right embedded systems architecture depends on factors such as application complexity, response time, hardware resources, scalability, and maintenance requirements. Each architecture offers unique advantages, making it suitable for different types of embedded applications.
| Architecture Type | Best Suited For | Why Choose It? |
|---|
| Layered Architecture | General embedded applications, consumer electronics | Easy to maintain, modular, and scalable |
| Modular Architecture | Large and complex projects | Independent modules simplify development, testing, and future upgrades |
| Event-Driven Architecture | Sensor-based and real-time systems | Provides immediate responses to interrupts and external events |
| Client-Server Architecture | IoT devices, smart homes, industrial monitoring | Enables communication and data sharing between connected devices |
| RTOS-Based Architecture | Automotive, medical, industrial control | Supports deterministic task scheduling and real-time execution |
| Bare-Metal Architecture | Small microcontroller projects, simple embedded devices | Low memory usage, fast execution, and minimal software overhead |
Embedded Systems Architecture Design Process
Designing an embedded systems architecture involves several stages that ensure both hardware and software meet application requirements.
Step 1: Requirement Analysis
Define the functional and non-functional requirements of the product. Consider performance, response time, memory needs, power consumption, communication interfaces, and environmental conditions.
Step 2: Hardware Selection
Choose the appropriate microcontroller or processor based on processing capability, memory size, peripheral support, operating voltage, and cost.
Step 3: Software Design
Develop the firmware architecture by organizing device drivers, middleware, communication stacks, RTOS (if required), and application logic.
Step 4: Integration
Combine hardware and software components, verify communication between peripherals, and perform functional testing.
Step 5: Validation and Optimization
Evaluate system performance, optimize memory usage, reduce power consumption, improve execution speed, and verify reliability under different operating conditions.

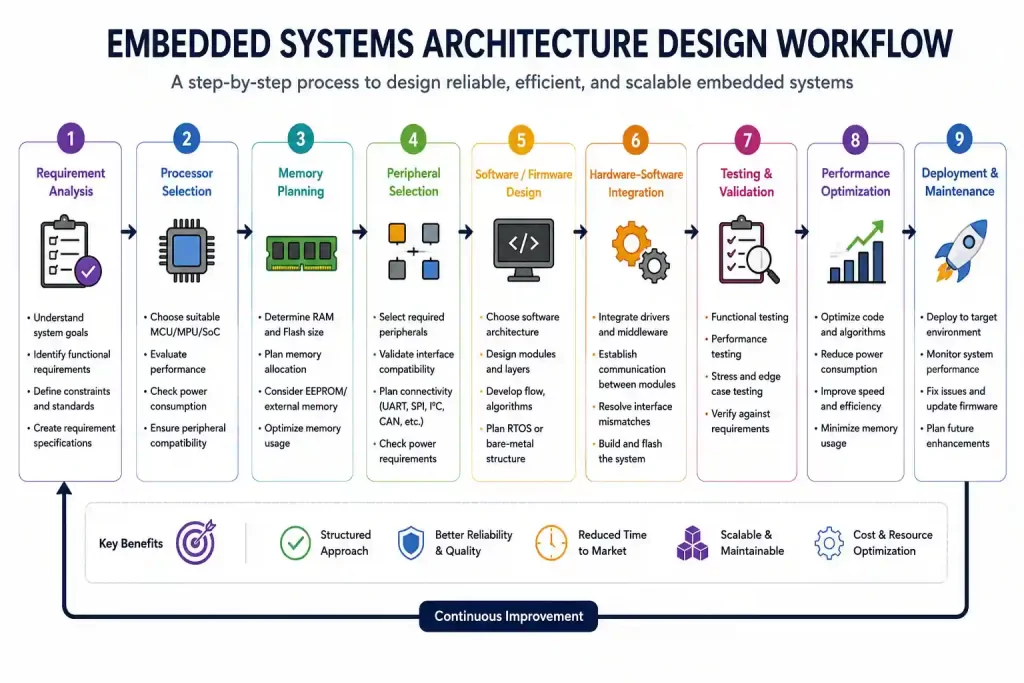

Embedded Systems Architecture Design Workflow
The following workflow illustrates the key stages involved in designing an embedded systems architecture, from defining requirements to deployment and maintenance.
The workflow provides a high-level overview of the embedded systems architecture design process. The following sections explain each stage in detail.
Factors to Consider While Designing Embedded Architecture
A successful embedded architecture balances performance, cost, reliability, and future expansion.
Important design considerations include:
- Processing performance
- Memory requirements
- Power consumption
- System reliability
- Real-time response
- Hardware cost
- Security requirements
- Communication interfaces
- Scalability
- Ease of maintenance
Selecting the right balance between these factors helps build efficient and dependable embedded products.
Optimizing an embedded systems architecture improves performance, power efficiency, and resource utilization. Since embedded systems operate with limited CPU, memory, and energy, careful optimization ensures reliable and responsive operation.
Key Optimization Techniques
- Minimize Interrupt Latency: Keep ISRs short and prioritize critical interrupts for faster response.
- Optimize Memory Access: Use memory efficiently to reduce execution time and improve performance.
- Use DMA: Transfer data directly between peripherals and memory to reduce CPU workload.
- Select Appropriate Clock Speed: Balance processing performance with power consumption.
- Optimize Task Scheduling: Assign task priorities effectively in RTOS-based systems to improve CPU utilization.
- Reduce Execution Time: Use efficient algorithms and optimized code to improve responsiveness.
- Optimize Power Consumption: Apply sleep modes, clock scaling, and peripheral power management to extend battery life.
Best Practices
- Keep ISRs short.
- Use DMA for high-speed data transfer.
- Allocate memory efficiently.
- Optimize RTOS task priorities.
- Profile firmware to identify bottlenecks.
- Apply low-power techniques for battery-powered devices.
Advantages of a Good Embedded Systems Architecture
A well-designed architecture provides long-term benefits throughout product development and maintenance.
Some key advantages include:
- Improves system performance
- Enhances software maintainability
- Simplifies debugging and testing
- Reduces development time
- Supports modular development
- Optimizes power and memory usage
- Increases product reliability
- Makes future upgrades easier
Limitations of Embedded Systems Architecture
Despite its advantages, embedded architecture also presents certain challenges during development.
Common limitations include:
- Limited memory and processing resources
- Strict real-time requirements
- Hardware dependency
- Complex integration of hardware and software
- Difficult debugging in resource-constrained systems
- Higher development effort for safety-critical applications
Proper planning and modular design help reduce these limitations.
Embedded Systems Architecture vs Embedded Systems Design
| Embedded Systems Architecture | Embedded Systems Design |
|---|
| Defines the overall structure of the system | Focuses on implementing the architecture |
| Specifies hardware and software organization | Develops hardware circuits and firmware |
| Determines component interaction | Implements individual modules |
| Guides system scalability and maintainability | Ensures functional requirements are met |
| Planned during the early development stage | Continues throughout product development |
This distinction is important because architecture provides the blueprint, while design turns that blueprint into a working embedded system.
Real-World Examples of Embedded Systems Architecture
Embedded systems architecture is used in many industries to ensure reliable, efficient, and real-time operation.
- Automotive ECU: Controls engine management, braking, airbags, and other vehicle functions using microcontrollers, sensors, actuators, and CAN communication.
- Medical Devices: Powers equipment such as patient monitors, ECG machines, and infusion pumps with high reliability and accuracy.
- Industrial Automation: Used in PLCs, robotic arms, and motor controllers for real-time monitoring and machine control.
- IoT Devices: Enables smart home products, wearables, and connected sensors through embedded firmware and wireless communication.
- Consumer Electronics: Supports devices like smart TVs, washing machines, digital cameras, and microwave ovens for efficient control and user interaction.
Common Challenges in Embedded Systems Architecture
Developing an embedded architecture involves balancing multiple technical requirements within limited hardware resources.
Some common challenges include:
- Managing limited memory and storage.
- Meeting strict real-time deadlines.
- Reducing power consumption in battery-powered devices.
- Ensuring reliable communication between peripherals.
- Integrating hardware and software without compatibility issues.
- Protecting the system against security threats.
- Supporting future hardware or software upgrades.
Addressing these challenges early in the design process reduces development time and improves product reliability.
Best Practices for Embedded Systems Architecture
Following proven design practices results in a stable, scalable, and maintainable embedded system.
Some recommended practices are:
- Design modular hardware and software components.
- Select hardware based on application requirements instead of maximum specifications.
- Separate hardware-dependent code using a Hardware Abstraction Layer (HAL).
- Keep firmware organized into reusable modules.
- Validate hardware and software together during integration.
- Document interfaces, communication protocols, and system behavior.
- Perform regular testing throughout development instead of waiting until the final stage.
Common Mistakes to Avoid
Many embedded development issues originate from design decisions made early in the project.
| Mistake | Impact | How to Avoid |
|---|
| Ignoring memory requirements | System crashes or instability | Estimate memory usage during planning |
| Choosing an unsuitable microcontroller | Performance limitations | Match hardware with application needs |
| Poor module organization | Difficult maintenance | Use layered or modular architecture |
| Skipping integration testing | Hidden hardware-software issues | Test modules as they are developed |
| Ignoring power optimization | Reduced battery life | Enable low-power modes and optimize firmware |
Future Trends in Embedded Systems Architecture
Embedded systems continue to evolve as applications demand greater intelligence, security, and efficiency.
Some emerging trends include:
- Edge AI and TinyML: Running machine learning models directly on microcontrollers for faster decision-making.
- Multi-core Microcontrollers: Improving performance by handling multiple tasks simultaneously.
- Secure Embedded Systems: Integrating hardware security features, secure boot, and encrypted communication.
- Low-Power Architectures: Optimizing energy consumption for portable and battery-operated devices.
- Advanced IoT Connectivity: Supporting faster and more reliable communication using modern wireless technologies.
As these technologies mature, embedded architectures will become more scalable, secure, and capable of handling increasingly complex applications.
Conclusion
Embedded Systems Architecture serves as the blueprint for building reliable and efficient embedded products. It defines how hardware and software components work together to meet application requirements while balancing performance, power consumption, cost, and reliability.
A solid understanding of embedded architecture helps engineers design systems that are easier to develop, maintain, and expand. Whether working on automotive electronics, medical devices, industrial automation, or IoT products, mastering embedded systems architecture provides a strong foundation for successful embedded system design.
