Memory Layout in C Programming: Stack, Heap, Data & Text Segments Explained

Memory Layout in Linux

In Linux systems, process memory is divided into two major regions:

• Kernel Space
• User Space

User applications cannot directly access kernel space. Attempting to access restricted memory causes a segmentation fault.

Inside user space, a C program memory layout is mainly divided into four important segments:

• Text Segment
• Data Segment
• Heap Segment
• Stack Segment

1. Text Segment (Code Segment)

The Text Segment is also called the Code Segment. It stores the compiled machine instructions of the program.

Features of Text Segment

• Read-only memory region
• Contains executable instructions
• Shared among multiple instances of the same program
• Helps save system memory

The operating system protects this section from modification to improve security and stability.

Example

#include

int main() {
    printf("Hello World");
    return 0;
}

The compiled instructions of main() are stored inside the text segment.

2. Data Segment

The Data Segment stores global variables and static variables.

It is divided into two parts:

Initialized Data Segment

Stores variables initialized by the programmer.

Example

int count = 10;
static int value = 5;

These variables occupy memory before program execution starts.

BSS Segment (Block Started by Symbol)

The BSS segment in C stores uninitialized global and static variables.

Example

int number;
static int total;

The operating system automatically initializes these variables to:

• 0
• NULL

This reduces executable file size because only variable metadata is stored.

3. Heap Segment

The Heap is used for dynamic memory allocation in C.

Functions such as:

• malloc()
• calloc()
• realloc()
• free()

operate on heap memory.

The heap grows upward during runtime as memory requests increase.

Example of Heap Memory Allocation

#include
#include

int main() {
    int *ptr;

    ptr = (int*)malloc(sizeof(int));

    *ptr = 100;

    printf("%d", *ptr);

    free(ptr);

    return 0;
}

Important Characteristics

• Runtime memory allocation
• Flexible memory size
• Memory must be manually released using free()
• Improper handling causes memory leaks

Heap Memory Advantages

• Dynamic memory allocation
• Useful for linked lists, trees, queues, and graphs
• Efficient for variable-sized data structures

Heap Memory Disadvantages

• Slower than stack memory
• Memory fragmentation may occur
• Risk of memory leaks

4. Stack Segment

The Stack Segment stores:

• Local variables
• Function parameters
• Return addresses
• Function call information

The stack grows downward in memory.

Every function call creates a separate memory block called a stack frame.

Stack Frame in C

Whenever a function is called:

• A new stack frame is pushed onto the stack
• Local variables are created
• Function arguments are stored
• Return address is saved

When the function finishes execution, the stack frame is automatically removed.

Example

#include

void display() {
    int x = 10;
    printf("%d", x);
}

int main() {
    display();
    return 0;
}

Here:

• x is stored inside the stack frame of display()
• After function execution, memory is automatically released

Stack vs Heap in C Programming

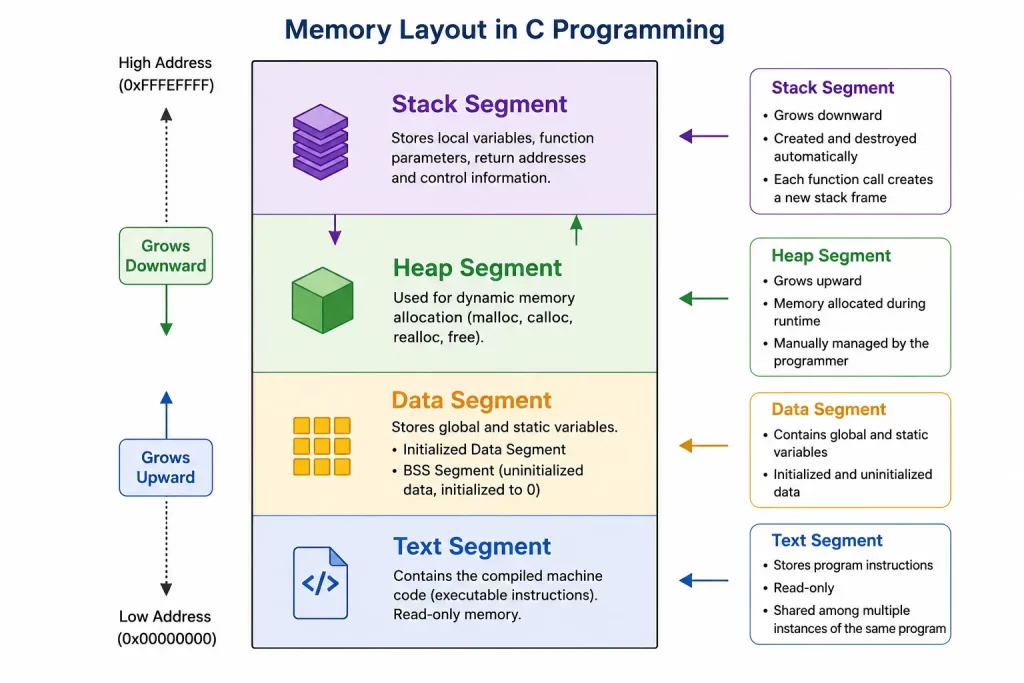

Memory Layout Diagram in C

The overall memory organization of a C program looks like this:

---------------------
|     Stack         |
|-------------------|
|                   |
|       Heap        |
|-------------------|
|    BSS Segment    |
|-------------------|
| Initialized Data  |
|-------------------|
|   Text Segment    |
---------------------

Common Memory Errors in C

1. Memory Leak

Occurs when dynamically allocated memory is not freed.

ptr = malloc(100);
// forgot free(ptr);

2. Stack Overflow

Occurs when excessive recursion or large local variables consume stack memory.

3. Segmentation Fault

Occurs when accessing invalid memory locations.

Example:

int *ptr = NULL;
*ptr = 10;

Importance of Memory Layout in Embedded Systems

In embedded C programming, memory resources are limited. Understanding memory segments helps developers:

• Optimize RAM usage
• Improve execution speed
• Reduce power consumption
• Avoid crashes in microcontrollers

This concept is especially important in:

• IoT devices
• RTOS applications
• Linux device drivers
• Automotive embedded systems

Best Practices for Memory Management in C

• Always initialize pointers
• Free dynamically allocated memory
• Avoid unnecessary global variables
• Use recursion carefully
• Monitor stack usage in embedded systems
• Check malloc return values

Conclusion

Understanding memory layout in C programming is fundamental for writing efficient, optimized, and secure applications. The text segment, data segment, heap, and stack each play a critical role in program execution.

A solid understanding of:

• stack and heap memory in C
• Linux process memory layout
• dynamic memory allocation
• stack frames
• BSS and data segments

helps programmers build better software and avoid common memory-related issues.

For embedded systems, IoT development, and system-level programming, mastering memory management is essential for creating reliable applications.
